Medical PCB Assembly and Manufacturing

Medical PCB assembly is the process of placing, soldering, inspecting, and testing electronic components on circuit boards used in medical-device products. It may include surface-mount, through-hole, mixed-technology, fine-pitch, and BGA components. Because device reliability and documentation matter, programs typically require controlled processes, traceability, inspection records, and manufacturing practices aligned with applicable medical quality requirements.

Yes. South Bay Circuits identifies ISO 13485 compliance for medical device products among its quality credentials. This supports a controlled approach to manufacturing medical electronics, including documented processes and quality-focused production practices. Customers should define their device-specific documentation, validation, traceability, and regulatory requirements early so the manufacturing plan can be aligned to the program.

SBC supports surface-mount technology, through-hole assembly, mixed-technology builds, fine-pitch assembly, and BGA components. Additional capabilities include RoHS-compliant assembly, conformal coating, potting, water-soluble flux, and specialty hand soldering. This range helps medical-device teams select assembly methods that fit their component mix, environmental needs, form factor, and reliability objectives.

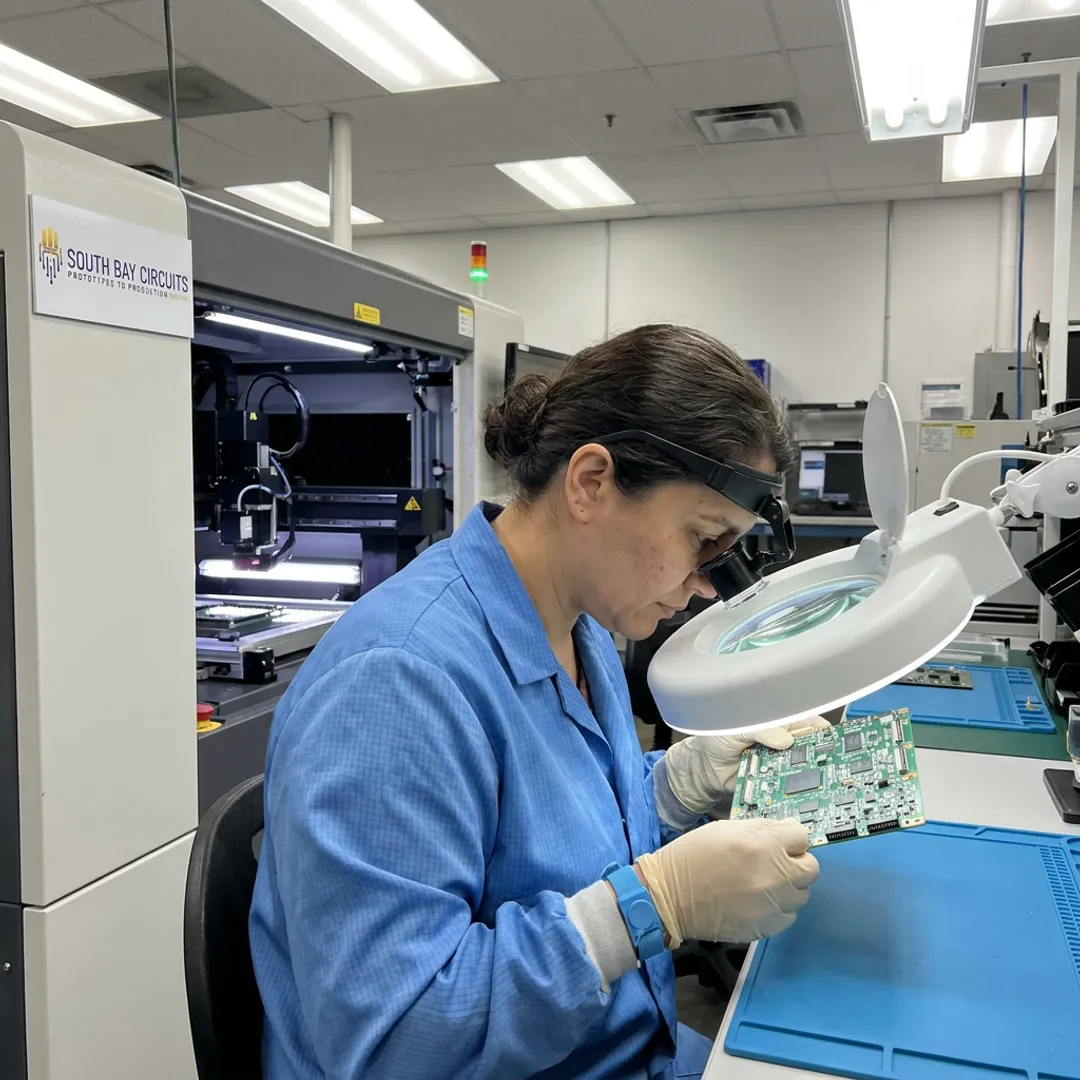

SBC offers automated optical inspection, X-ray inspection, in-circuit testing, and functional testing. AOI helps identify visible placement and solder issues, while X-ray can examine hidden solder connections such as BGAs. In-circuit and functional testing provide additional verification based on the product’s test strategy. Test requirements, fixtures, procedures, and acceptance criteria should be defined during program planning.

Yes. South Bay Circuits supports same-day and three-day-turn prototype assembly options as well as standard production and high-volume manufacturing. Keeping design collaboration, assembly, and testing coordinated helps preserve knowledge as a program advances. For volume needs, SBC also has offshore production partners to provide additional capacity and cost-focused options while maintaining program oversight.

SBC provides full traceability through its ERP system as part of its integrated assembly and testing services. The exact records required depend on the program, but traceability planning can address material identification, build history, inspection results, test results, and revision control. Supplying a complete bill of materials, approved vendor information, and documentation requirements at kickoff supports a more controlled build.

Yes. SBC’s design services include schematic capture, circuit-board design engineering, layout-ready packages, DFM and DFT evaluations, component sourcing consultation, and manufacturability cost-reduction guidance. Reviewing a design before release can identify component, layout, test-access, and assembly concerns early. That reduces the risk of delays and supports a smoother transition from engineering prototypes into repeatable production.

Turn time depends on design readiness, component availability, assembly complexity, test requirements, and documentation needs. SBC offers same-day, three-day-turn, and standard-production assembly options. A realistic schedule begins with a review of the approved files, bill of materials, procurement status, build quantity, required inspections, and any functional test or traceability requirements for the medical-device program.
